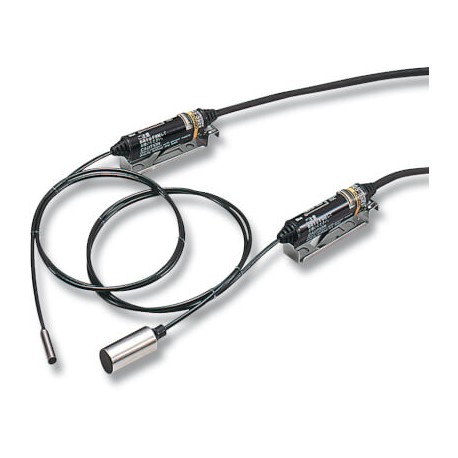

OMRON E2EC-CR8D2 2M E2EC-CR8D2 2M E2EC1018C E2ECCR8D22M OMRON Proximity sensor, inductive, Dia 3 mm, Shielded, 0.8 mm, DC, 2-wir.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EC-CR8D2 2M E2EC1018C E2ECCR8D22M OMRON Proximity sensor, inductive, Dia 3 mm, Shielded, 0.8 mm, DC, 2-wir..

E2EC-CR8D2 2M

E2EC1018C

E2ECCR8D22M

OMRON

1 Pcs.

Proximity sensor, inductive, Dia 3 mm, Shielded, 0.8 mm, DC, 2-wire, PW, NC

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for compact spaces, the Omron E2EC-CR8D2 2M is an inductive proximity sensor utilized for precise metallic object detection in tight machine layouts. Automated assembly systems depend on these miniature detectors to monitor precise positioning and count small components.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • 3-mm dia.: ⬛
  • 5.4-mm dia.: E2EC-C1R5D1
  • 8-mm dia.: E2EC-C3D1
  • M12: E2EC-X4D1
  • 8-mm dia.: ⬛
  • Response frequency: 1.5 kHz
  • Power supply voltage (Operating voltage): 12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.
  • Protective circuits: Surge absorber, short-circuit protection
  • Ambient temperature: Operating
  • Storage Degree of protection: IEC60529 IP67
  • Material: Case
  • Sensing surface: ABS
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Type of switching output (EF003962): 2-wire

More info

▲
Features

Sub-miniature inductive sensor for demanding mounting conditions with remote amplifier

The E2EC family features the smallest sensor heads for reliable sensing in areas where mounting space is crucial. The miniature sizes of the sensing heads are achieved by separating the sensing part from the amplifier. In contrast to standard separate amplifier models the E2EC family simplifies the installation as the amplifier is built into the cable.

  • 3 mm diameter sensing head for smallest spaces
  • 18 mm long ultra short M12 size housing
  • Full metal housing model for highest resistance in demanding environments

Ordering information

Standard (plastic sensing surface) DC 2-wire

Size



Order code
(pre-wired types with 2 m cable length)1

Operation mode NO

Operation mode NC

3-mm dia.

⬛

−

E2EC-CR8D1

E2EC-CR8D2

5.4-mm dia.

E2EC-C1R5D1

E2EC-C1R5D2

8-mm dia.

E2EC-C3D1

E2EC-C3D2

M12

E2EC-X4D1

E2EC-X4D2

High protection (all metal face) DC 3-wire and DC 2-wire

Size



Order code
(pre-wired types with 2 m cable length)2

DC 3-wire
Operation mode NO

DC 2-wire
Operation mode NO

8-mm dia.

⬛

−

E2EC-MC2B1

E2EC-MC2D1

E2EC-QC2D1-M1GJ-T3
(fluoroplastic coating)

Specifications

Item

dia. 3

dia. 5.4

dia. 8

M12

E2EC-CR8D_

E2EC-C1R5D_

E2EC-MC

E2EC-QC

E2EC-C3D_

E2EC-X4D_

Sensing distance

0.8 mm±15%

1.5 mm±10%

2 mm±10%

3 mm±10%

4 mm±10%

Response frequency

1.5 kHz

100 Hz

1 kHz

Power supply voltage
(Operating voltage)

12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.

Protective circuits

Surge absorber, short-circuit protection

Ambient temperature

Operating

−25 to 70°C (with no icing or condensation)

Storage

Degree of protection

IEC60529 IP67

Material

Case

Brass

Stainless steel (SUS303)

Brass

Sensing surface

ABS

Stainless steel (SUS303)

ABS


1.Cable length from sensor head to remote amplifier is 0.4 m
2.Cable length from sensor head to remote amplifier is 0.4 m
3.The remote amplifier is equipped with a M12 plug with 30 cm cable. Cable length from sensor head to remote amplifier is 0.5 m

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
