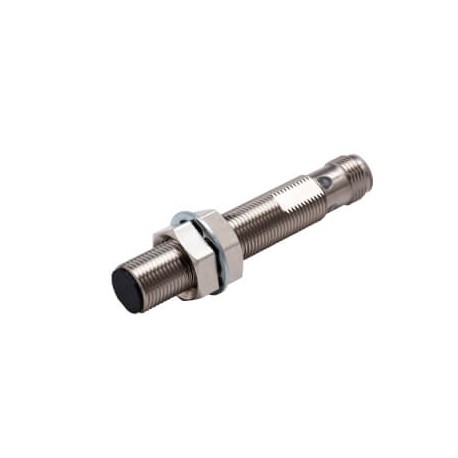

E2E-X9C2L12-M1 E2EN0810B E2EX9C2L12M1OMS OMRON Proximity sensor, inductive, nickel-brass, long body, M12, sh..
E2E-X9C2L12-M1
E2EN0810B
E2EX9C2L12M1OMS
OMRON
1 Pcs.
Automation > Inductive proximity switch
New E2E
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built for precision positioning, the Omron E2E-X9C2L12-M1 inductive proximity sensor detects metal objects without physical contact in automated environments. Such sensors are critical for machine control, feedback loops, and object counting on production floors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Size: M12
- Mounting type: Quasi-flush
- Sensing distance: 9 mm
- Overall length: 70 mm
- Thread length: 55 mm
- Material housing: Brass, nickel plated
- Output type: NPN
- Operation mode: NC
- Connection method: Connector M12
- Degree of protection (IP): IP67/IP69K
- Voltage type (EF000187): DC
- Construction type housing (EF004008): Cylinder, screw-thread
- Coating housing (EF001601): Nickel-plated
- Mechanical mounting condition for sensor (EF004041): Quasi-flat
- Type of actuation (EF006949): Metallic Target
- Type of switch function (EF003963): Breaker contact
More info
▲Specifications
| Size | M12 |
| Mounting type | Quasi-flush |
| Sensing distance | 9 mm |
| Overall length | 70 mm |
| Thread length | 55 mm |
| Material housing | Brass, nickel plated |
| Output type | NPN |
| Operation mode | NC |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | |
| Degree of protection (IP) | IP67/IP69K |
