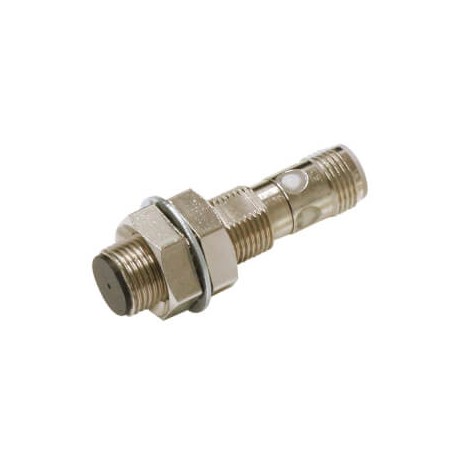

OMRON E2E-X9B1T12-M1 E2E-X9B1T12-M1 E2EN0930C 687519 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X9B1T12-M1 E2EN0930C 687519 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, ..

E2E-X9B1T12-M1

E2EN0930C

E2EX9B1T12M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M12, shielded, 9 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2E-X9B1T12-M1 proximity sensor, inductive monitors metallic presence and movement without physical wear, widely utilized in high-speed manufacturing environments. This component transmits precise operational data to industrial control units.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Quasi-flush
  • Sensing distance: 9 mm
  • Overall length: 48 mm
  • Thread length: 29 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM3 (230.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Mechanical mounting condition for sensor: Quasi-flat
  • Housing material: Metal
  • Voltage type: DC
  • Construction type housing: Cylinder, screw-thread
  • Coating housing: Nickel-plated

More info

▲

Specifications

SizeM12
Mounting typeQuasi-flush
Sensing distance9 mm
Overall length48 mm
Thread length29 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM3 (230.4 kbps)
Degree of protection (IP)IP67/IP69K
