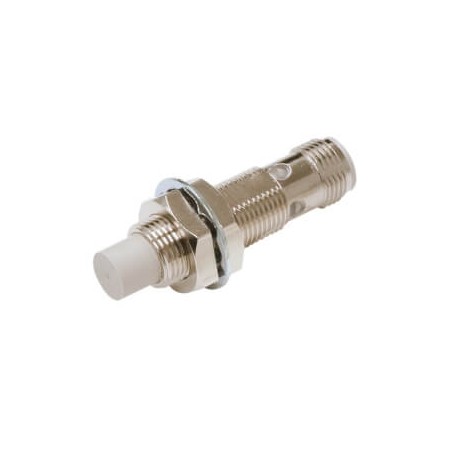

OMRON E2E-X8MB3D12-M1 E2E-X8MB3D12-M1 E2EN1173A 689263 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, unshielde.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X8MB3D12-M1 E2EN1173A 689263 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, unshielde..

E2E-X8MB3D12-M1

E2EN1173A

E2EX8MB3D12M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M12, unshielded, 8 mm, DC, 3-wire, PNP NO+NC, IO-Link COM2, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2E-X8MB3D12-M1 proximity sensor, inductive detects metallic objects without physical contact in automated assembly lines and material handling systems. These sensors allow control systems to monitor exact component positions and manage machinery cycles safely and reliably.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Non-flush
  • Sensing distance: 8 mm
  • Overall length: 48 mm
  • Thread length: 19 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO + NC
  • Connection method: Connector M12
  • IO-Link baud rate: COM2 (38.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target

More info

▲

Specifications

SizeM12
Mounting typeNon-flush
Sensing distance8 mm
Overall length48 mm
Thread length19 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO + NC
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM2 (38.4 kbps)
Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
