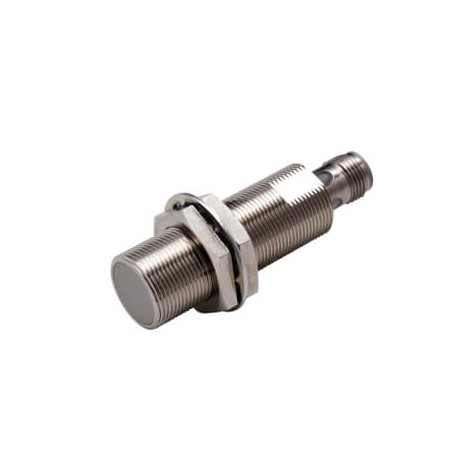

OMRON E2E-X8B3DL18-M1 E2E-X8B3DL18-M1 E2EN1787M 687855 OMRON Proximity sensor, inductive, long nickel-brass body, M18, shielded, 8.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X8B3DL18-M1 E2EN1787M 687855 OMRON Proximity sensor, inductive, long nickel-brass body, M18, shielded, 8..

E2E-X8B3DL18-M1

E2EN1787M

E2EX8B3DL18M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M18, shielded, 8 mm, DC, 3-wire, PNP NO+NC, IO-Link COM2, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for advanced industrial automation, the Omron E2E-X8B3DL18-M1 inductive proximity sensor provides reliable non-contact detection of metallic targets. Modern manufacturing systems use these IO-Link equipped threaded sensors to monitor precise position data and transmit diagnostic information. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Quasi-flush
  • Sensing distance: 8 mm
  • Overall length: 75 mm
  • Thread length: 60 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO + NC
  • Connection method: Connector M12
  • IO-Link baud rate: COM2 (38.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target

More info

▲

Specifications

SizeM18
Mounting typeQuasi-flush
Sensing distance8 mm
Overall length75 mm
Thread length60 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO + NC
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM2 (38.4 kbps)
Degree of protection (IP)IP67/IP69K
