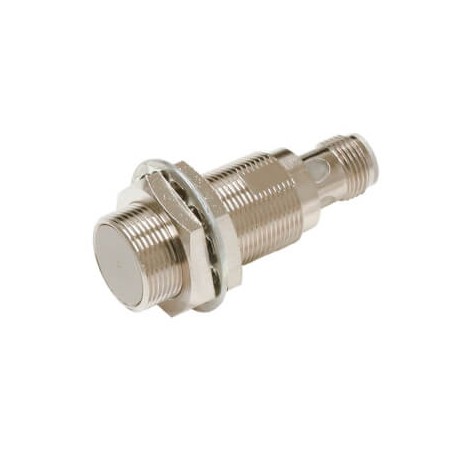

OMRON E2E-X8B1T18-M1 E2E-X8B1T18-M1 E2EN1512E 687512 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X8B1T18-M1 E2EN1512E 687512 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, ..

E2E-X8B1T18-M1

E2EN1512E

E2EX8B1T18M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, .. designated as E2E-X8B1T18-M1 by Omron provides dependable object sensing for factory automation and material handling systems. Shielded inductive sensors allow flush mounting in metal structures while maintaining accurate detection of passing metallic parts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Quasi-flush
  • Sensing distance: 8 mm
  • Overall length: 53 mm
  • Thread length: 34 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM3 (230.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Housing material (EF001596): Metal
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated

More info

▲

Specifications

SizeM18
Mounting typeQuasi-flush
Sensing distance8 mm
Overall length53 mm
Thread length34 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM3 (230.4 kbps)
Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
