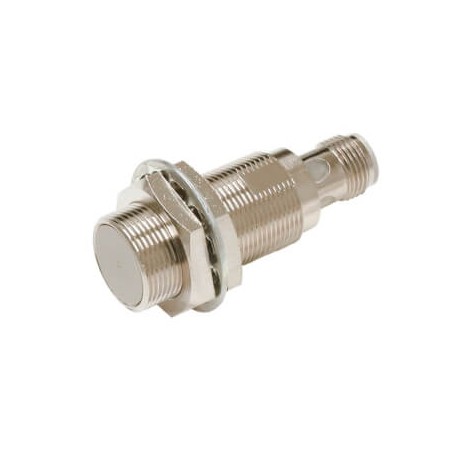

OMRON E2E-X8B1D18-M1 E2E-X8B1D18-M1 E2EN1721G E2EX8B1D18M1OMS OMRON Proximity sensor, inductive, nickel-brass, short body, M18, s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X8B1D18-M1 E2EN1721G E2EX8B1D18M1OMS OMRON Proximity sensor, inductive, nickel-brass, short body, M18, s..

E2E-X8B1D18-M1

E2EN1721G

E2EX8B1D18M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP NO, IO-Link COM2, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Sensing metal targets accurately is the primary function of this Omron E2E-X8B1D18-M1 proximity sensor, inductive, nickel-brass, short body, M18, s..

These cylindrical electronic components provide essential position monitoring and object presence detection in automated industrial processes, material handling equipment, and packaging lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Quasi-flush
  • Sensing distance: 8 mm
  • Overall length: 53 mm
  • Thread length: 34 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM2 (38.4 kbps)
  • Degree of protection (IP): IP67/IP69K

More info

▲

Specifications

SizeM18
Mounting typeQuasi-flush
Sensing distance8 mm
Overall length53 mm
Thread length34 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM2 (38.4 kbps)
Degree of protection (IP)IP67/IP69K

Accessories

Y92E-J18S30Mounting Sleeves e-jig for M18 Prox

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
