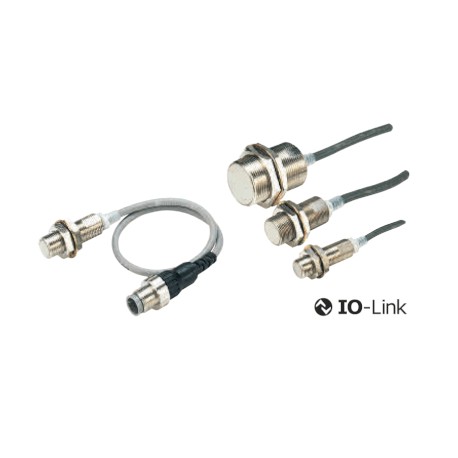

E2E-X7B4-IL2 2M E2E 8283M E2EX7B4IL22MOMS OMRON Inductive Short-3h Enr 7mm M18 PNP no/NC Cable 2m IO LINK CO..
E2E-X7B4-IL2 2M
E2E 8283M
E2EX7B4IL22MOMS
OMRON
1 Pcs.
Automation > Inductive proximity switch
E2E
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲IO-Link standard proximity sensors as the innovative solution to solve issues at industrial manufacturing sites
IO-Link standard proximity sensors as the innovative solution to solve issues at industrial manufacturing sites
- Downtime can be reduced through internal diagnostic functions
- The sudden failure can be decreased by notifying, if objects being too far or too close
- Maintenance operations are more efficient by identification of each sensor through the IO link network
- Programmable operation of the sensor reduces the number of models required
DC 3-wire IO-Link models
 | ||||||||
Specifications
DC 3-wire IO-Link models (E2E-X_B4-IL_)
Set distance1 | ||||
Response frequency2 | ||||
Indicators1 | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and stability indicator (green, lit) In the IO-Link mode: Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) | |||
IEC 60529 IP67, in-house standards: oil-resistant3 | ||||
Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) | ||||
Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, and initial reset | ||||
PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2) | ||||
In the IO-Link mode, use the product in a range that the Byte1_bit4 for instability detection is zero. (Although the Byte1_bit5 for excessive proximity detection is one if the object detected has approached excessively, the detection performance is stable.)
Please contact your OMRON sales representative regarding assignment of data.
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Nickel-plated |
| Mechanical mounting condition for sensor (EF004041) | Concise |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of interface for safety communication (EF003956) | None |
| Type of actuation (EF006949) | Metallic Target |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Type of interface (EF006977) | Other |
| SIL according to IEC 61508 (EF009889) | None |
| Housing material (EF001596) | Metal |
| Type of switching output (EF003962) | PNP |
| Interference resistance to magnetic fields (EF008275) | Immune against magnetic DC-field |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | No |
| With monitoring function downstream switching devices (EF004052) | Yes |
| Compression-resistant (EF007106) | No |
| Suitable for safety functions (EF001597) | No |
| Number of protected contact energized outputs (EF003952) | 1 |
| Number of protected semiconductor outputs (EF003951) | 1 |
| Diameter sensor (EF007111) | 12 mm |
| Switching distance (EF003647) | 7 mm |
| Length of sensor (EF007334) | 55 mm |
| Number of contact energized outputs with signalling function (EF003946) | 1 |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 10 V |
