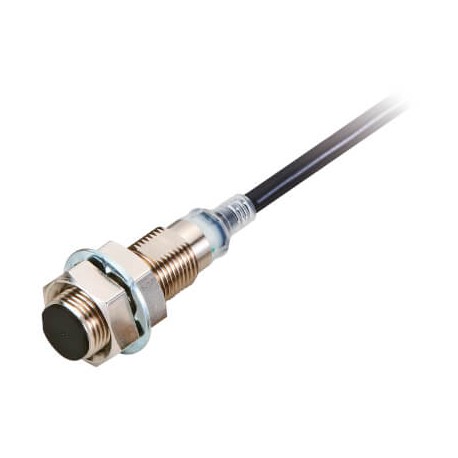

OMRON E2E-X5D2-TR-N 5M E2E-X5D2-TR-N 5M E2E 8568F 681645 OMRON Proximity Sensor, Inductive, Brass-Nickel, M18, Flush, 5 mm, NA, 5 m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X5D2-TR-N 5M E2E 8568F 681645 OMRON Proximity Sensor, Inductive, Brass-Nickel, M18, Flush, 5 mm, NA, 5 m..

E2E-X5D2-TR-N 5M

E2E 8568F

E2EX5D2TRN5MOMS

OMRON

1 Pcs.

Proximity Sensor, inductive, brass-nickel, M18, shielded, 5 mm, NC, 5 m cable robotic, DC 2-wire, non-polarity

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, specifically the Omron E2E-X5D2-TR-N 5M, functions as an electronic component that detects metallic targets without physical contact, commonly used for position monitoring, counting, and limit sensing in automated machinery. Units of this type operate by utilizing an inductive oscillator circuit to register the presence of conductive materials in industrial applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): 2-wire
  • Cascadable (EF000507): No
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
