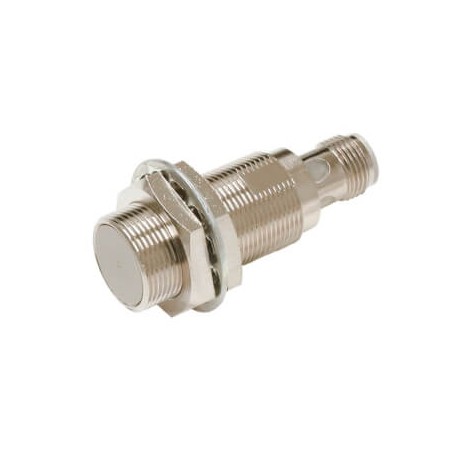

OMRON E2E-X5C218-M1 E2E-X5C218-M1 E2EN1270C E2EX5C218M1OMS OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X5C218-M1 E2EN1270C E2EX5C218M1OMS OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shi..

E2E-X5C218-M1

E2EN1270C

E2EX5C218M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 5 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2E-X5C218-M1 is an inductive proximity sensor engineered for non-contact target detection in automated factory environments. Industrial proximity sensors detect metallic objects without physical contact, providing reliable position feedback for machinery, conveyor paths, and assembly lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Flush
  • Sensing distance: 5 mm
  • Overall length: 53 mm
  • Thread length: 34 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM18
Mounting typeFlush
Sensing distance5 mm
Overall length53 mm
Thread length34 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K

Accessories

Y92E-J18S30Mounting Sleeves e-jig for M18 Prox
