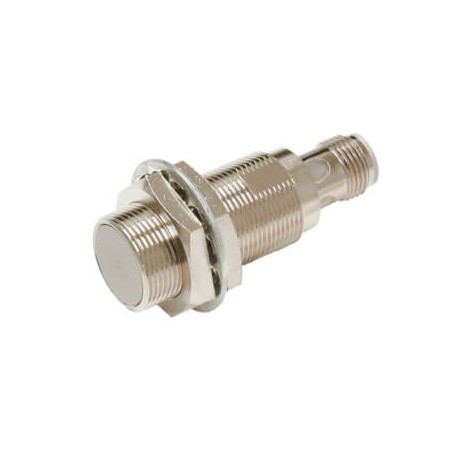

OMRON E2E-X5B218-M1 E2E-X5B218-M1 E2EN1492G 700001 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X5B218-M1 E2EN1492G 700001 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8..

E2E-X5B218-M1

E2EN1492G

E2EX5B218M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 5 mm, DC, 3-wire, PNP NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part E2E-X5B218-M1 is an inductive proximity sensor engineered for non-contact detection of metallic targets in automated machinery and production lines. These sensors are widely deployed across industrial settings to monitor position, count items, or detect limits of mechanical movement without physical wear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Flush
  • Sensing distance: 5 mm
  • Overall length: 53 mm
  • Thread length: 34 mm
  • Material housing: Brass, nickel plated
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM18
Mounting typeFlush
Sensing distance5 mm
Overall length53 mm
Thread length34 mm
Material housingBrass, nickel plated
Output typePNP
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K

Accessories

Y92E-J18S30Mounting Sleeves e-jig for M18 Prox
