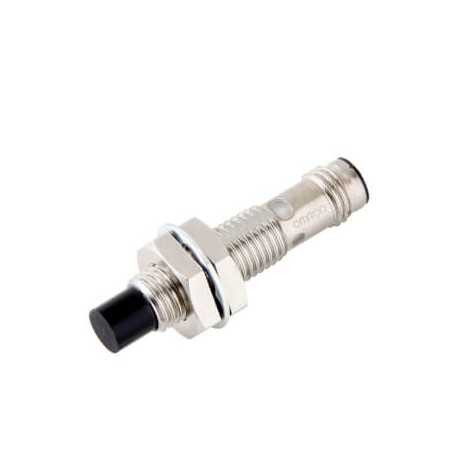

OMRON E2E-X4MB1T8-M3 E2E-X4MB1T8-M3 E2EN0349F 688097 OMRON Proximity Sensor, Inductive, SUS Short Body, M8, Unshielded, 4mm, DC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X4MB1T8-M3 E2EN0349F 688097 OMRON Proximity Sensor, Inductive, SUS Short Body, M8, Unshielded, 4mm, DC, ..

E2E-X4MB1T8-M3

E2EN0349F

E2EX4MB1T8M3OMS

OMRON

1 Pcs.

Proximity sensor, inductive, short SUS body M8, unshielded, 4 mm, DC, 3-wire, PNP NO, IO-Link COM3, M8 connector 4 pins

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2E-X4MB1T8-M3 is an inductive proximity sensor engineered for non-contact target detection in automated machinery. Industrial control systems rely on these components to accurately monitor position, count items, or track mechanical cycles without physical wear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M8
  • Mounting type: Non-flush
  • Sensing distance: 4 mm
  • Overall length of sensor: 39 mm
  • Thread length: 20 mm
  • Material housing: Stainless steel
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M8 - 4 pin
  • IO-Link baud rate: COM3 (230.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact

More info

▲

Specifications

SizeM8
Mounting typeNon-flush
Sensing distance4 mm
Overall length of sensor39 mm
Thread length20 mm
Material housingStainless steel
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M8 - 4 pin
Cable specifications-
IO-Link function
IO-Link baud rateCOM3 (230.4 kbps)
Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
