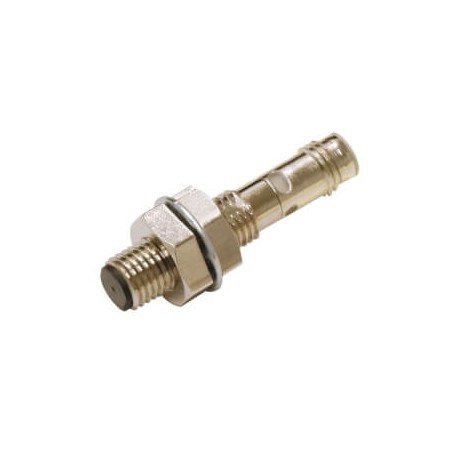

OMRON E2E-X4C18-M5 E2E-X4C18-M5 E2EN0071C 694980 OMRON Proximity sensor, inductive, long brass body, M8, shielded, 4 mm, DC, 3-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X4C18-M5 E2EN0071C 694980 OMRON Proximity sensor, inductive, long brass body, M8, shielded, 4 mm, DC, 3-..

E2E-X4C18-M5

E2EN0071C

E2EX4C18M5OMS

OMRON

1 Pcs.

Proximity sensor, inductive, short brass body M8, shielded, 4 mm, DC, 3-wire, NPN NO, M8 connector 3 pins

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for compact machine integration, this Omron proximity sensor, inductive, long brass body, M8, shielded, 4 mm, DC, 3- (E2E-X4C18-M5) delivers reliable object detection without physical contact. Engineers incorporate cylindrical inductive sensors into automated equipment to monitor moving parts, track production rates, and control operational sequences safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M8
  • Mounting type: Quasi-flush
  • Sensing distance: 4 mm
  • Overall length: 39 mm
  • Thread length: 21 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NO
  • Connection method: Connector M8 - 3 pin
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M8

More info

▲

Specifications

SizeM8
Mounting typeQuasi-flush
Sensing distance4 mm
Overall length39 mm
Thread length21 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNO
Connection methodConnector M8 - 3 pin
Cable specifications-
IO-Link function

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
