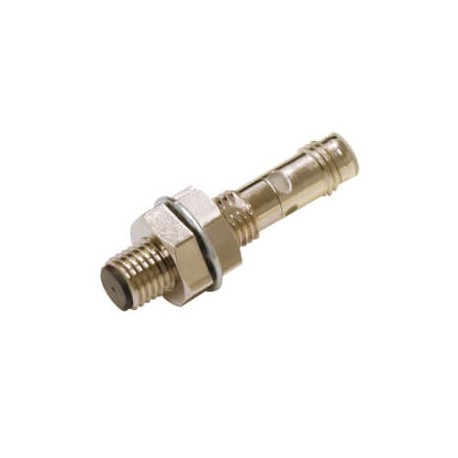

OMRON E2E-X4C18-M3 E2E-X4C18-M3 E2EN0069A 698707 OMRON Proximity sensor, inductive, short body brass M8, flush, 4 mm, DC, 3-wir.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X4C18-M3 E2EN0069A 698707 OMRON Proximity sensor, inductive, short body brass M8, flush, 4 mm, DC, 3-wir..

E2E-X4C18-M3

E2EN0069A

E2EX4C18M3OMS

OMRON

1 Pcs.

Proximity sensor, inductive, short brass body M8, shielded, 4 mm, DC, 3-wire, NPN NO, M8 connector 4 pins

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron E2E-X4C18-M3 inductive proximity sensor provides non-contact detection of metal parts within automated production lines and industrial machinery. Technicians rely on cylindrical proximity switches to track cycle counts, manage material flow, and detect structural limits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M8
  • Mounting type: Quasi-flush
  • Sensing distance: 4 mm
  • Overall length: 39 mm
  • Thread length: 21 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NO
  • Connection method: Connector M8 - 4 pin
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact

More info

▲

Specifications

SizeM8
Mounting typeQuasi-flush
Sensing distance4 mm
Overall length39 mm
Thread length21 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNO
Connection methodConnector M8 - 4 pin
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K

Accessories

Y92E-J8S12Mounting Sleeves e-jig for M8 Prox
