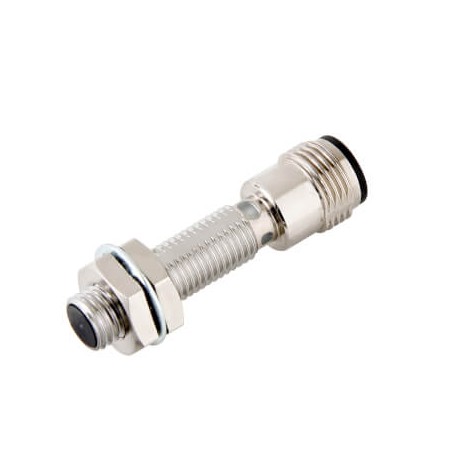

OMRON E2E-X4B1T8-M1 E2E-X4B1T8-M1 E2EN0311R 687530 OMRON Proximity Sensor, Inductive, SUS Short Body, M8, Shielded, 4mm, DC, 3-W.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X4B1T8-M1 E2EN0311R 687530 OMRON Proximity Sensor, Inductive, SUS Short Body, M8, Shielded, 4mm, DC, 3-W..

E2E-X4B1T8-M1

E2EN0311R

E2EX4B1T8M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, short brass body M8, shielded, 4 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron inductive proximity sensor model E2E-X4B1T8-M1 is a precision electronic component deployed in industrial machinery to detect metallic workpieces and machine components without physical contact. By utilizing electromagnetic sensing principles, such devices provide consistent presence and position data to control systems across diverse automated processes.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M8
  • Mounting type: Quasi-flush
  • Sensing distance: 4 mm
  • Overall length of sensor: 43 mm
  • Thread length: 21 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM3 (230.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Housing material (EF001596): Metal
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated

More info

▲

Specifications

SizeM8
Mounting typeQuasi-flush
Sensing distance4 mm
Overall length of sensor43 mm
Thread length21 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM3 (230.4 kbps)
Degree of protection (IP)IP67/IP69K

Accessories

Y92E-J8S12Mounting Sleeves e-jig for M8 Prox

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
