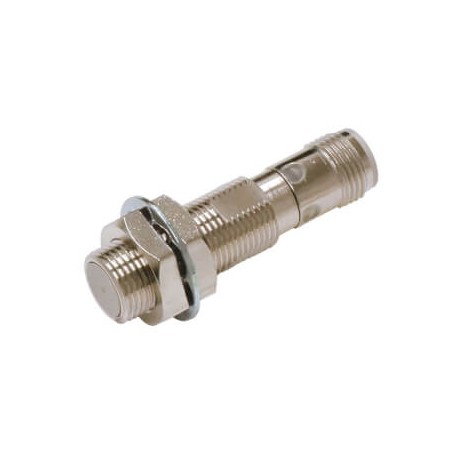

OMRON E2E-X4B1D12-M1 E2E-X4B1D12-M1 E2EN1123E E2EX4B1D12M1OMS OMRON Proximity sensor, inductive, nickel-brass, short body, M12, s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X4B1D12-M1 E2EN1123E E2EX4B1D12M1OMS OMRON Proximity sensor, inductive, nickel-brass, short body, M12, s..

E2E-X4B1D12-M1

E2EN1123E

E2EX4B1D12M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M12, shielded, 4 mm, 3-wire DC, PNP NA, IO-Link COM2, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2E-X4B1D12-M1 is an inductive proximity sensor engineered for non-contact detection of metal targets in automated machinery and production lines. These sensors detect metallic objects passing within range and convert the physical presence into a reliable electrical switching signal for controllers and logic systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Quasi-flush
  • Sensing distance: 4 mm
  • Overall length: 48 mm
  • Thread length: 29 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM2 (38.4 kbps)
  • Degree of protection (IP): IP67/IP69K

More info

▲

Specifications

SizeM12
Mounting typeQuasi-flush
Sensing distance4 mm
Overall length48 mm
Thread length29 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM2 (38.4 kbps)
Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
