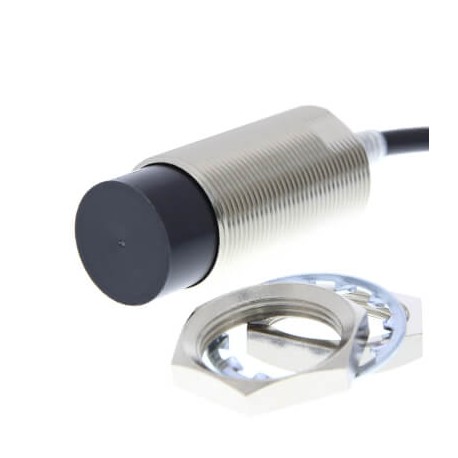

OMRON E2E-X40MD2L30-TR 5M E2E-X40MD2L30-TR 5M E2E 8468M 681859 OMRON Proximity sensor, inductive, brass-nickel, M30, non-flush, 40 mm,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X40MD2L30-TR 5M E2E 8468M 681859 OMRON Proximity sensor, inductive, brass-nickel, M30, non-flush, 40 mm,..

E2E-X40MD2L30-TR 5M

E2E 8468M

E2EX40MD2L30TR5MOMS

OMRON

1 Pcs.

Proximity Sensor, inductive, brass-nickel, M30, non-shielded, 40 mm, NC, 5 m cable robotic, DC 2-wire, non-polarity

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number E2E-X40MD2L30-TR 5M is an inductive proximity sensor commonly deployed in heavy-duty automation environments for non-contact object detection and machine cycle monitoring. Industrial setups depend on these robust detectors to sense large metal targets at extended ranges while resisting harsh operational conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Non-flush
  • Sensing distance: 40 mm
  • Overall length of sensor: 82.3 mm
  • Thread length: 50 mm
  • Material housing: Brass, nickel plated
  • Output type: 2-wire
  • Operation mode: NC
  • Connection method: Cable
  • Cable specifications: PVC (oil-resistant)
  • Cable length: 5 m
  • Features: Flexible cable
  • Degree of protection (IP): IP67/IP67G/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated

More info

▲

Specifications

SizeM30
Mounting typeNon-flush
Sensing distance40 mm
Overall length of sensor82.3 mm
Thread length50 mm
Material housingBrass, nickel plated
Output type2-wire
Operation modeNC
Connection methodCable
Cable specificationsPVC (oil-resistant)
Cable length5 m
IO-Link function
FeaturesFlexible cable
Degree of protection (IP)IP67/IP67G/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
