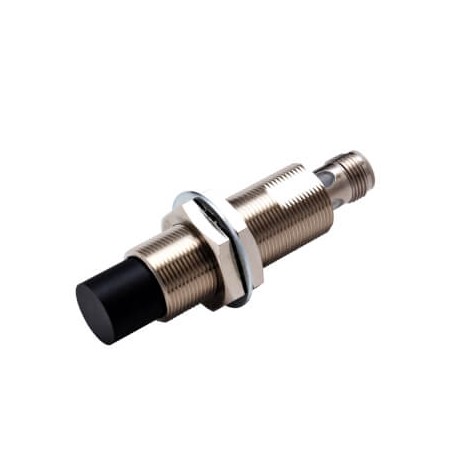

OMRON E2E-X30MC2L18-M1 E2E-X30MC2L18-M1 E2EN1472B E2EX30MC2L18M1OMS OMRON Proximity sensor, inductive, long body nickel-brass, M18,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X30MC2L18-M1 E2EN1472B E2EX30MC2L18M1OMS OMRON Proximity sensor, inductive, long body nickel-brass, M18,..

E2E-X30MC2L18-M1

E2EN1472B

E2EX30MC2L18M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, long body nickel-brass, M18, unshielded, 30 mm, DC, 3 wires, NPN NC, M12 connector Proximity sensor, inductive, nickel-brass, long body, M18, unshielded, 30 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2E-X30MC2L18-M1 proximity sensor, inductive, long body nickel-brass, M18, functions as a reliable switching element for detecting metallic parts in factory automation setups. Inductive sensors reduce operational wear by identifying target positions without making direct contact with the moving assembly.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Non-flush
  • Sensing distance: 30 mm
  • Overall length of sensor: 75 mm
  • Thread length: 47 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • IO-Link baud rate: Not Applicable
  • Degree of protection (IP): IP67/IP69K
  • Type of actuation (EF006949): Metallic Target
  • Type of electric connection (EF003961): Connector M12
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0

More info

▲

Specifications

SizeM18
Mounting typeNon-flush
Sensing distance30 mm
Overall length of sensor75 mm
Thread length47 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateNot Applicable
Degree of protection (IP)IP67/IP69K
