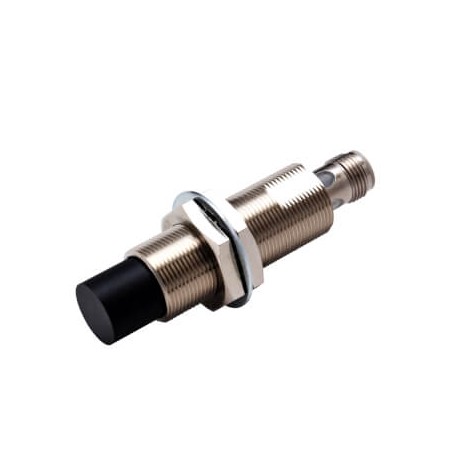

OMRON E2E-X30MB1TL18-M1 E2E-X30MB1TL18-M1 E2EN1693H 687981 OMRON Proximity sensor, inductive, nickel-brass long body, M18, unshielde.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X30MB1TL18-M1 E2EN1693H 687981 OMRON Proximity sensor, inductive, nickel-brass long body, M18, unshielde..

E2E-X30MB1TL18-M1

E2EN1693H

E2EX30MB1TL18M1OMS

OMRON

5 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M18, unshielded, 30 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, inductive, nickel-brass long body, M18, unshielde detects metal targets efficiently within demanding industrial automation processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 30 mm

More info

▲
SizeM18Mounting typeNon-flushSensing distance30 mmOverall length of sensor75 mmThread length47 mmMaterial housingBrass, nickel platedOutput typeIO-Link, PNPOperation modeNOConnection methodConnector M12Cable specifications-IO-Link functionIO-Link baud rateCOM3 (230.4 kbps)Degree of protection (IP)IP67/IP69K
