View larger
Images are for illustrative purposes only. Please refer to data sheet for details

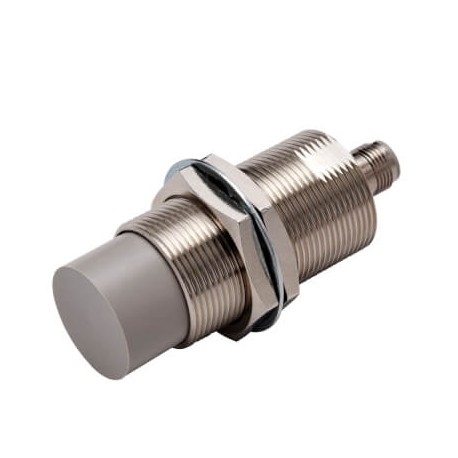

E2E-X30MB1DL30-M1 E2EN2368C E2EX30MB1DL30M1OMS OMRON Proximity sensor, inductive, nickel-brass, long body, M..
E2E-X30MB1DL30-M1
E2EN2368C
E2EX30MB1DL30M1OMS
OMRON
1 Pcs.
Proximity sensor, inductive, nickel-brass, long body, M30, unshielded, 30mm, DC, 3-wire, PNP-NO, IO-Link COM2, M12 connector
Automation > Inductive proximity switch
New E2E
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | M30 |
| Mounting type | Non-flush |
| Sensing distance | 30 mm |
| Overall length | 80 mm |
| Thread length | 50 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | |
| IO-Link baud rate | COM2 (38.4 kbps) |
| Degree of protection (IP) | IP67/IP69K |
