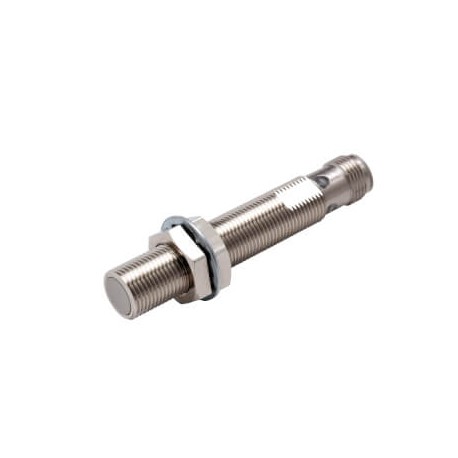

OMRON E2E-X2C3L12-M1 E2E-X2C3L12-M1 E2EN0778E E2EX2C3L12M1OMS OMRON Proximity sensor, inductive, nickel-brass, long body, M12, sh.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X2C3L12-M1 E2EN0778E E2EX2C3L12M1OMS OMRON Proximity sensor, inductive, nickel-brass, long body, M12, sh..

E2E-X2C3L12-M1

E2EN0778E

E2EX2C3L12M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M12, shielded, 2 mm, DC, 3-wire, NPN NO+NC, 2 m cable

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, inductive like the Omron E2E-X2C3L12-M1 detects metallic components without physical wear, supporting continuous operation in demanding production machinery. These sensors are frequently integrated into automated setups to monitor mechanical travel and provide precise timing pulses. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Flush
  • Sensing distance: 2 mm
  • Overall length: 70 mm
  • Thread length: 55 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NO + NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Anticoincidence

More info

▲

Specifications

SizeM12
Mounting typeFlush
Sensing distance2 mm
Overall length70 mm
Thread length55 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNO + NC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K
