OMRON E2E-X2B3D12-M1 E2E-X2B3D12-M1 E2EN1110C 698853 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X2B3D12-M1 E2EN1110C 698853 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, ..

E2E-X2B3D12-M1

E2EN1110C

E2EX2B3D12M1OMS

OMRON

1 Pcs.

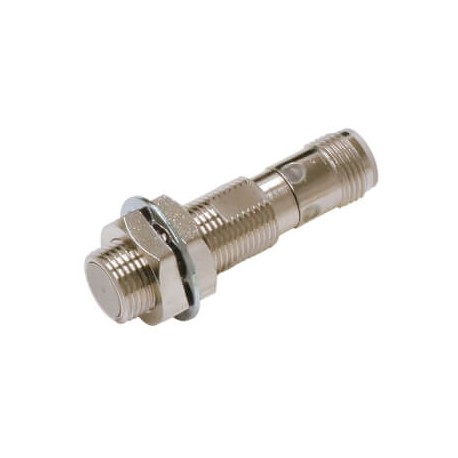

Proximity sensor, inductive, nickel-brass, short body, M12, shielded, 2 mm, DC, 3-wire, PNP NO+NC, IO-Link COM2, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, inductive, nickel-brass, short body, M12, shielded, ... is standard equipment in factory automation for sensing the presence of conductive materials without physical impact. Units of this type integrate into machinery to deliver precise counting, speed monitoring, and limit-stop detection across demanding industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Flush
  • Sensing distance: 2 mm
  • Overall length: 48 mm
  • Thread length: 29 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO + NC
  • Connection method: Connector M12
  • IO-Link baud rate: COM2 (38.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target

More info

▲

Specifications

SizeM12
Mounting typeFlush
Sensing distance2 mm
Overall length48 mm
Thread length29 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO + NC
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM2 (38.4 kbps)
Degree of protection (IP)IP67/IP69K
