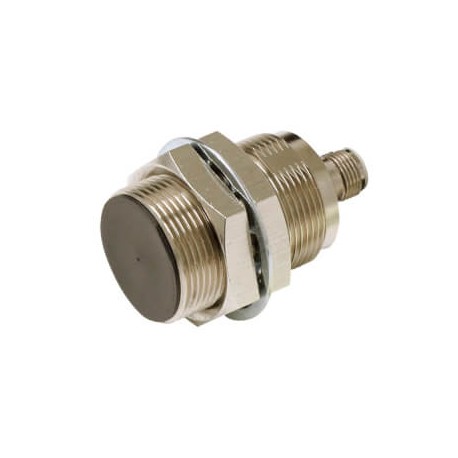

OMRON E2E-X23C230-M1 E2E-X23C230-M1 E2EN1913R 694070 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X23C230-M1 E2EN1913R 694070 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, ..

E2E-X23C230-M1

E2EN1913R

E2EX23C230M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 23 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, specifically the Omron E2E-X23C230-M1, utilizes inductive technology to detect metal elements reliably in heavy-duty commercial and industrial environments. Plant operators rely on these devices to monitor moving parts, control automated workflows, and ensure precise synchronization across complex machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 23 mm
  • Overall length: 58 mm
  • Thread length: 38 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM30
Mounting typeQuasi-flush
Sensing distance23 mm
Overall length58 mm
Thread length38 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K
