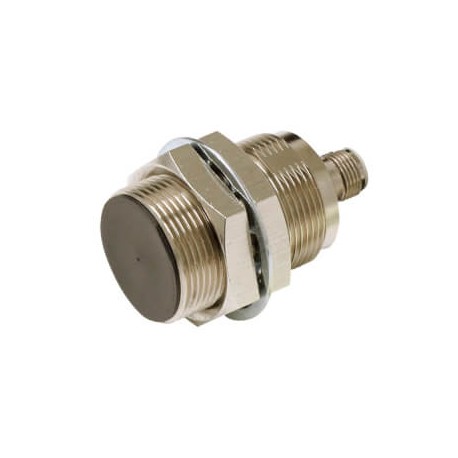

OMRON E2E-X23B230-M1 E2E-X23B230-M1 E2EN2123M 698656 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X23B230-M1 E2EN2123M 698656 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, ..

E2E-X23B230-M1

E2EN2123M

E2EX23B230M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 23 mm, DC, 3-wire, PNP NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2E-X23B230-M1 E2EN2123M 698656 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, .. functions as a non-contact detection device in industrial automation setups to sense metallic workpieces. Engineers rely on these sensors for cycle counting, limit sensing, and automated position feedback loops.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 23 mm
  • Overall length: 58 mm
  • Thread length: 38 mm
  • Material housing: Brass, nickel plated
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM30
Mounting typeQuasi-flush
Sensing distance23 mm
Overall length58 mm
Thread length38 mm
Material housingBrass, nickel plated
Output typePNP
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
