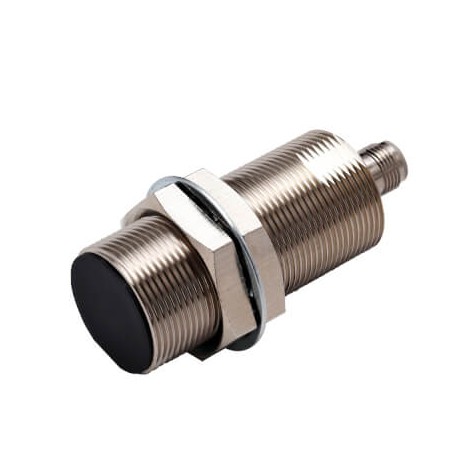

OMRON E2E-X23B1TL30-M1 E2E-X23B1TL30-M1 E2EN2187G 687850 OMRON Proximity sensor, inductive, nickel-brass long body, M30, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X23B1TL30-M1 E2EN2187G 687850 OMRON Proximity sensor, inductive, nickel-brass long body, M30, shielded, ..

E2E-X23B1TL30-M1

E2EN2187G

E2EX23B1TL30M1OMS

OMRON

5 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M30, shielded, 23 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Proximity sensor, inductive, nickel-brass long body, M30, shielded, .. (part number E2E-X23B1TL30-M1) is an inductive proximity sensor engineered to detect metallic targets without physical contact in automated industrial environments. These devices form a core part of machine monitoring loops, sending precise switching signals to controllers when an object enters the active detection zone.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 23 mm
  • Overall length: 80 mm
  • Thread length: 64 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM3 (230.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target

More info

▲

Specifications

SizeM30
Mounting typeQuasi-flush
Sensing distance23 mm
Overall length80 mm
Thread length64 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM3 (230.4 kbps)
Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
