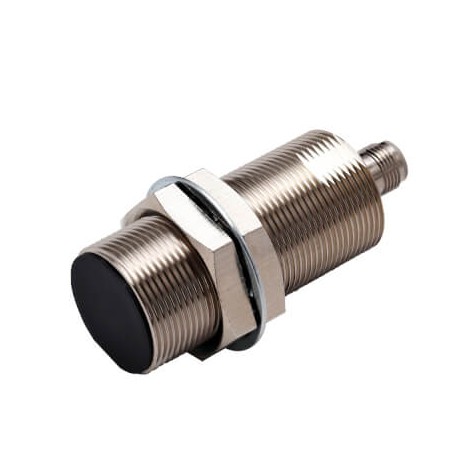

OMRON E2E-X22C1L30-M1 E2E-X22C1L30-M1 E2EN1968F 696317 OMRON Proximity sensor, inductive, long nickel-brass body, M30, unshielded,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X22C1L30-M1 E2EN1968F 696317 OMRON Proximity sensor, inductive, long nickel-brass body, M30, unshielded,..

E2E-X22C1L30-M1

E2EN1968F

E2EX22C1L30M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M30, shielded, 22 mm, DC, 3-wire, NPN NO, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, inductive, long nickel-brass body, M30, unshielded is deployed across industrial environments to monitor movement, detect metallic machine components, and provide reliable non-contact feedback for control systems. By sensing ferrous and non-ferrous targets within automated processes, this device helps prevent mechanical collisions and streamlines sequence timing.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 22 mm
  • Overall length: 80 mm
  • Thread length: 64 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NO
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact

More info

▲

Specifications

SizeM30
Mounting typeQuasi-flush
Sensing distance22 mm
Overall length80 mm
Thread length64 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
