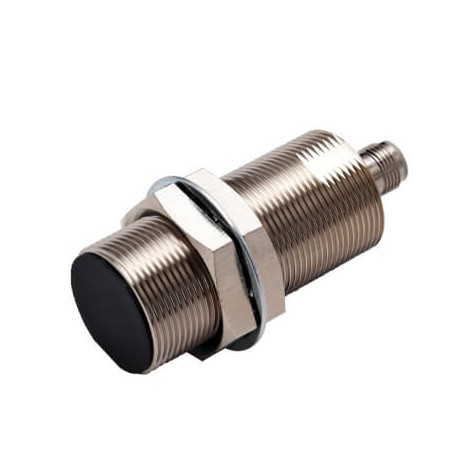

OMRON E2E-X22B2L30-M1 E2E-X22B2L30-M1 E2EN2179F E2EX22B2L30M1OMS OMRON Proximity sensor, inductive, nickel-brass, long body, M30, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X22B2L30-M1 E2EN2179F E2EX22B2L30M1OMS OMRON Proximity sensor, inductive, nickel-brass, long body, M30, ..

E2E-X22B2L30-M1

E2EN2179F

E2EX22B2L30M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M30, shielded, 22 mm, DC, 3-wire, PNP NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron long body inductive proximity sensor built for dependable metallic object detection in demanding factory automation setups. These sensors serve as essential feedback devices in material handling, robotics, and machine tools, registering presence and position reliably. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 22 mm
  • Overall length: 80 mm
  • Thread length: 64 mm
  • Material housing: Brass, nickel plated
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM30
Mounting typeQuasi-flush
Sensing distance22 mm
Overall length80 mm
Thread length64 mm
Material housingBrass, nickel plated
Output typePNP
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
