E2E-X22B1TL30-M1 E2EN2178H E2EX22B1TL30M1OMS OMRON Proximity sensor, inductive, nickel-brass, long body, M30..
E2E-X22B1TL30-M1
E2EN2178H
E2EX22B1TL30M1OMS
OMRON
5 Pcs.

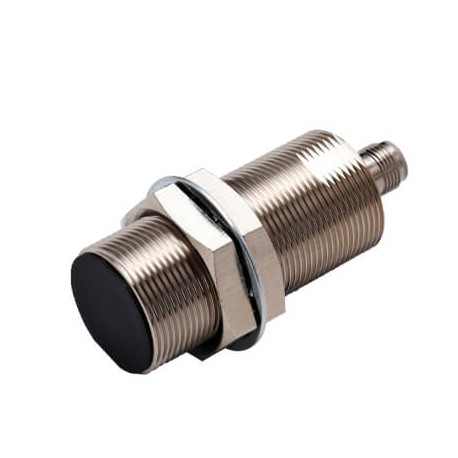

Proximity sensor, inductive, nickel-brass, long body, M30, shielded, 22 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector
Automation > Inductive proximity switch
New E2E
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron E2E-X22B1TL30-M1 proximity sensor, inductive delivers dependable non-contact position sensing for heavy machinery, robotics, and complex material handling systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Size: M30
- Mounting type: Quasi-flush
- Sensing distance: 22 mm
- Overall length: 80 mm
- Thread length: 64 mm
- Material housing: Brass, nickel plated
- Output type: IO-Link, PNP
- Operation mode: NO
- Connection method: Connector M12
- IO-Link baud rate: COM3 (230.4 kbps)
- Degree of protection (IP): IP67/IP69K
- Voltage type (EF000187): DC
- Construction type housing (EF004008): Cylinder, screw-thread
- Coating housing (EF001601): Nickel-plated
- Mechanical mounting condition for sensor (EF004041): Quasi-flat
- Type of actuation (EF006949): Metallic Target
More info
▲Specifications
| Size | M30 |
| Mounting type | Quasi-flush |
| Sensing distance | 22 mm |
| Overall length | 80 mm |
| Thread length | 64 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Degree of protection (IP) | IP67/IP69K |
