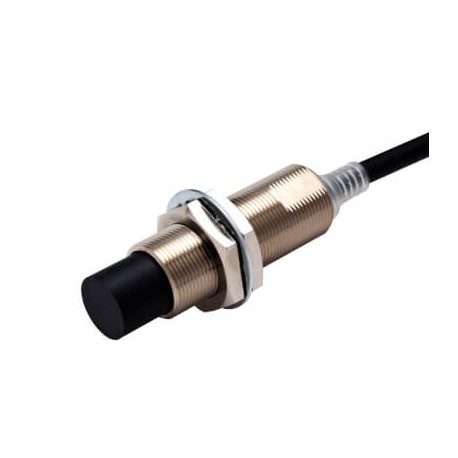

OMRON E2E-X20MC1L18 2M E2E-X20MC1L18 2M E2EN1438B E2EX20MC1L182MOMS OMRON Proximity sensor, inductive, nickel-brass, long body, M18.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X20MC1L18 2M E2EN1438B E2EX20MC1L182MOMS OMRON Proximity sensor, inductive, nickel-brass, long body, M18..

E2E-X20MC1L18 2M

E2EN1438B

E2EX20MC1L182MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M18, unshielded, 20 mm, DC, 3-wire, NPN NO, 2 m cable

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Long-body inductive proximity sensor E2E-X20MC1L18 2M from Omron is engineered for non-contact detection of metal parts in material handling systems and industrial production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Non-flush
  • Sensing distance: 20 mm
  • Overall length of sensor: 77.3 mm
  • Thread length: 47 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NO
  • Connection method: Cable
  • Cable specifications: PVC (oil-resistant)
  • Cable length: 2 m
  • IO-Link baud rate: Not Applicable
  • Degree of protection (IP): IP67/IP67G/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated

More info

▲

Specifications

SizeM18
Mounting typeNon-flush
Sensing distance20 mm
Overall length of sensor77.3 mm
Thread length47 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNO
Connection methodCable
Cable specificationsPVC (oil-resistant)
Cable length2 m
IO-Link function
IO-Link baud rateNot Applicable
Degree of protection (IP)IP67/IP67G/IP69K
