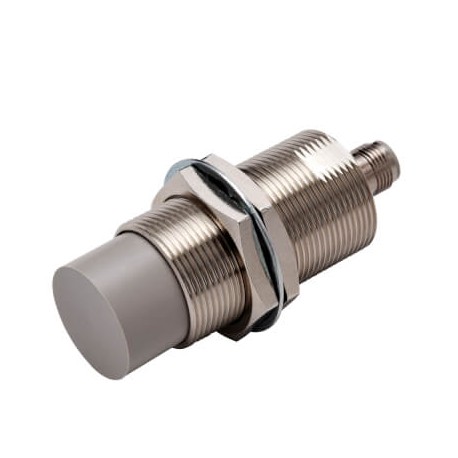

OMRON E2E-X18MC2L30-M1 E2E-X18MC2L30-M1 E2EN1989R 699966 OMRON Proximity sensor, inductive, long nickel-brass body, M30, unshielded.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X18MC2L30-M1 E2EN1989R 699966 OMRON Proximity sensor, inductive, long nickel-brass body, M30, unshielded..

E2E-X18MC2L30-M1

E2EN1989R

E2EX18MC2L30M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M30, unshielded, 18 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, inductive, long nickel-brass body, M30, unshielded.. from Omron (part number E2E-X18MC2L30-M1) detects metal objects without physical contact, making it ideal for monitoring position, speed, and part presence in rugged industrial processing lines. Non-contact inductive sensing prevents wear and tear, ensuring long-term reliability in automated machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Non-flush
  • Sensing distance: 18 mm
  • Overall length of sensor: 80 mm
  • Thread length: 52 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • IO-Link baud rate: Not Applicable
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target

More info

▲

Specifications

SizeM30
Mounting typeNon-flush
Sensing distance18 mm
Overall length of sensor80 mm
Thread length52 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateNot Applicable
Degree of protection (IP)IP67/IP69K
