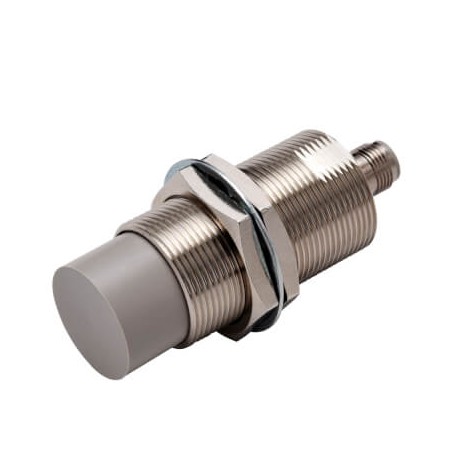

OMRON E2E-X18MB2L30-M1 E2E-X18MB2L30-M1 E2EN2199M 699968 OMRON Proximity sensor, inductive, nickel-brass long body, M30, unshielded.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X18MB2L30-M1 E2EN2199M 699968 OMRON Proximity sensor, inductive, nickel-brass long body, M30, unshielded..

E2E-X18MB2L30-M1

E2EN2199M

E2EX18MB2L30M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M30, unshielded, 18 mm, DC, 3-wire, PNP NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, inductive, nickel-brass long body, M30, unshielded is deployed in industrial environments to monitor the presence or movement of metal components without direct mechanical engagement. Engineers typically integrate these sensors into assembly lines, sorting machines, and automated conveyance systems for precise position detection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Non-flush
  • Sensing distance: 18 mm
  • Overall length: 80 mm
  • Thread length: 52 mm
  • Material housing: Brass, nickel plated
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM30
Mounting typeNon-flush
Sensing distance18 mm
Overall length80 mm
Thread length52 mm
Material housingBrass, nickel plated
Output typePNP
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K

Product Datasheet
