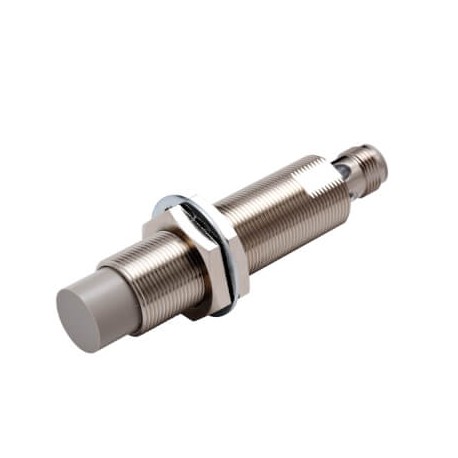

OMRON E2E-X16MC2L18-M1 E2E-X16MC2L18-M1 E2EN1436F 698858 OMRON Proximity sensor, inductive, long nickel-brass body, M18, unshielded.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X16MC2L18-M1 E2EN1436F 698858 OMRON Proximity sensor, inductive, long nickel-brass body, M18, unshielded..

E2E-X16MC2L18-M1

E2EN1436F

E2EX16MC2L18M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M18, unshielded, 16 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2E-X16MC2L18-M1 is an inductive proximity sensor used extensively in heavy-duty machinery to monitor moving metal parts and structural limits. Inductive sensing technology delivers dependable operation in harsh factory environments where physical contact is impractical. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Non-flush
  • Sensing distance: 16 mm
  • Overall length: 75 mm
  • Thread length: 50 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM18
Mounting typeNon-flush
Sensing distance16 mm
Overall length75 mm
Thread length50 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K
