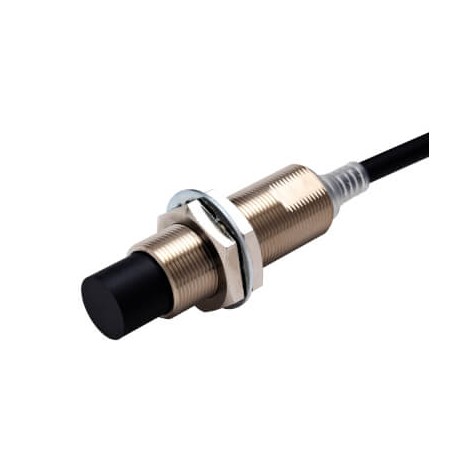

OMRON E2E-X16MB2L18 2M E2E-X16MB2L18 2M E2EN1649M 694977 OMRON Proximity sensor, inductive, nickel-brass long body, M18, unshielded.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X16MB2L18 2M E2EN1649M 694977 OMRON Proximity sensor, inductive, nickel-brass long body, M18, unshielded..

E2E-X16MB2L18 2M

E2EN1649M

E2EX16MB2L182MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M18, unshielded, 16 mm, DC, 3-wire, PNP NC, 2 m cable

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2E-X16MB2L18 2M proximity sensor, inductive, nickel-brass long body, M18, unshielded.. provides reliable non-contact detection of metal targets in automated production lines. Technicians integrate this type of sensor into industrial environments to track mechanical movement and control sequential operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Non-flush
  • Sensing distance: 16 mm
  • Overall length of sensor: 77.3 mm
  • Thread length: 50 mm
  • Material housing: Brass, nickel plated
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Cable
  • Cable specifications: PVC (oil-resistant)
  • Cable length: 2 m
  • IO-Link baud rate: Not Applicable
  • Degree of protection (IP): IP67/IP67G/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated

More info

▲

Specifications

SizeM18
Mounting typeNon-flush
Sensing distance16 mm
Overall length of sensor77.3 mm
Thread length50 mm
Material housingBrass, nickel plated
Output typePNP
Operation modeNC
Connection methodCable
Cable specificationsPVC (oil-resistant)
Cable length2 m
IO-Link function
IO-Link baud rateNot Applicable
Degree of protection (IP)IP67/IP67G/IP69K
