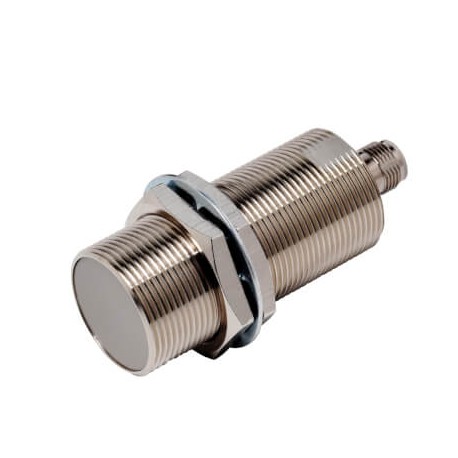

OMRON E2E-X15C2L30-M1 E2E-X15C2L30-M1 E2EN1957M 699617 OMRON Proximity sensor, inductive, long nickel-brass body, M30, unshielded,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X15C2L30-M1 E2EN1957M 699617 OMRON Proximity sensor, inductive, long nickel-brass body, M30, unshielded,..

E2E-X15C2L30-M1

E2EN1957M

E2EX15C2L30M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M30, shielded, 15 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2E-X15C2L30-M1 proximity sensor, inductive, long nickel-brass body, M30, unshielded functions as an electronic detection device used to monitor metallic objects without physical contact in industrial automation workflows. These sensors are widely deployed across assembly lines and machinery to track position, count items, or limit movement securely. Final pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 15 mm
  • Overall length: 80 mm
  • Thread length: 65 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM30
Mounting typeQuasi-flush
Sensing distance15 mm
Overall length80 mm
Thread length65 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K
