View larger
Images are for illustrative purposes only. Please refer to data sheet for details

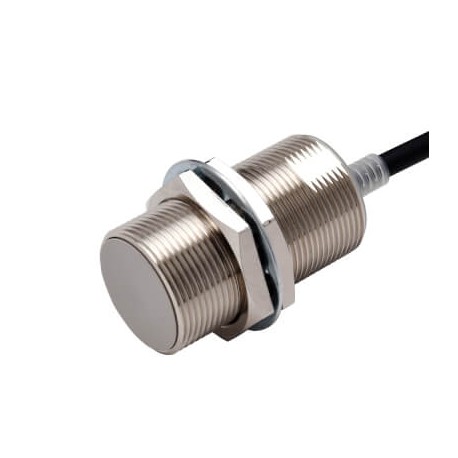

E2E-X15C2L30 5M E2EN1951A 699618 OMRON Proximity sensor, inductive, nickel-brass, short body, M30, flush, 14..
E2E-X15C2L30 5M
E2EN1951A
E2EX15C2L305MOMS
OMRON
1 Pcs.
Proximity sensor, inductive, nickel-brass, long body, M30, shielded, 15 mm, DC, 3-wire, NPN NC, 5 m cable
Automation > Inductive proximity switch
New E2E
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | M30 |
| Mounting type | Quasi-flush |
| Sensing distance | 15 mm |
| Overall length of sensor | 82.3 mm |
| Thread length | 65 mm |
| Material housing | Brass, nickel plated |
| Output type | NPN |
| Operation mode | NC |
| Connection method | Cable |
| Cable specifications | PVC (oil-resistant) |
| Cable length | 5 m |
| IO-Link function | |
| IO-Link baud rate | Not Applicable |
| Degree of protection (IP) | IP67/IP67G/IP69K |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Nickel-plated |
| Mechanical mounting condition for sensor (EF004041) | Quasi-flat |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of interface for safety communication (EF003956) | None |
| Type of actuation (EF006949) | Metallic Target |
| Type of switch function (EF003963) | Breaker contact |
| Type of electric connection (EF003961) | Cable |
| Type of interface (EF006977) | None |
| SIL according to IEC 61508 (EF009889) | None |
| Housing material (EF001596) | Metal |
| Type of switching output (EF003962) | NPN |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | Yes |
| With monitoring function downstream switching devices (EF004052) | No |
| Compression-resistant (EF007106) | No |
| Suitable for safety functions (EF001597) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Diameter sensor (EF007111) | 30 mm |
| Switching distance (EF003647) | 15 mm |
| Length of sensor (EF007334) | 82.3 mm |
| Switching frequency (EF003587) | 250 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 10 V |
