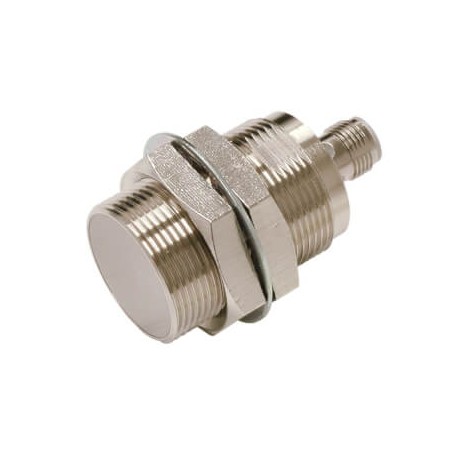

OMRON E2E-X15C230-M1 E2E-X15C230-M1 E2EN1877R 698832 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X15C230-M1 E2EN1877R 698832 OMRON Proximity sensor, inductive, nickel-brass, short body, M12, shielded, ..

E2E-X15C230-M1

E2EN1877R

E2EX15C230M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 15 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A proximity sensor, inductive, nickel-brass, short body, M12 functions as a non-contact electronic detector used across industrial automation to track the position of metallic targets. Such devices help streamline automated sorting, conveyer systems, and mechanical safety checkpoints.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 15 mm
  • Overall length: 58 mm
  • Thread length: 39 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM30
Mounting typeQuasi-flush
Sensing distance15 mm
Overall length58 mm
Thread length39 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K
