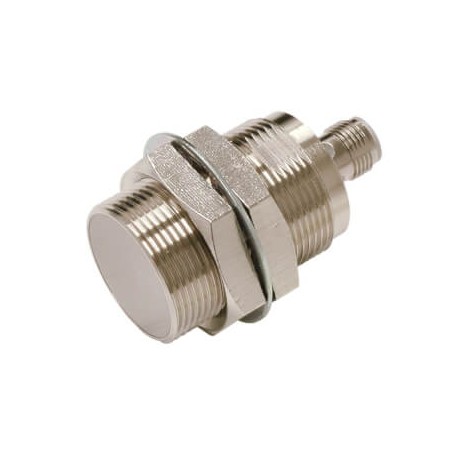

OMRON E2E-X15B1D30-M1 E2E-X15B1D30-M1 E2EN2283M E2EX15B1D30M1OMS OMRON Proximity sensor, inductive, nickel-brass, short body, M30,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X15B1D30-M1 E2EN2283M E2EX15B1D30M1OMS OMRON Proximity sensor, inductive, nickel-brass, short body, M30,..

E2E-X15B1D30-M1

E2EN2283M

E2EX15B1D30M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 15 mm, DC, 3-wire, PNP NO, IO-Link COM2, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2E-X15B1D30-M1 proximity sensor, inductive, nickel-brass, short body, M30, provides robust object detection for automated industrial processes. Inductive sensors are standard in manufacturing facilities for tracking metallic components, managing conveyor systems, and ensuring synchronization across automated workstations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 15 mm
  • Overall length: 58 mm
  • Thread length: 39 mm
  • Material housing: Brass, nickel plated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM2 (38.4 kbps)
  • Degree of protection (IP): IP67/IP69K

More info

▲

Specifications

SizeM30
Mounting typeQuasi-flush
Sensing distance15 mm
Overall length58 mm
Thread length39 mm
Material housingBrass, nickel plated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
IO-Link baud rateCOM2 (38.4 kbps)
Degree of protection (IP)IP67/IP69K
