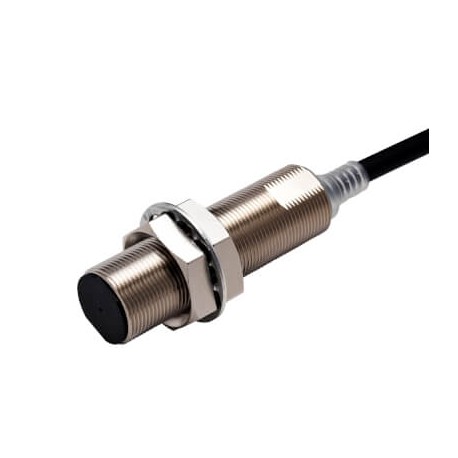

OMRON E2E-X14C2L18 2M E2E-X14C2L18 2M E2EN1407B E2EX14C2L182MOMS OMRON Proximity sensor, inductive, nickel-brass, long body, M18, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X14C2L18 2M E2EN1407B E2EX14C2L182MOMS OMRON Proximity sensor, inductive, nickel-brass, long body, M18, ..

E2E-X14C2L18 2M

E2EN1407B

E2EX14C2L182MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, long body, M18, shielded, 14 mm, DC, 3 wires, NPN NC, 2 m cable

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Proximity sensor, inductive, nickel-brass, long body, M18, ... identified as E2E-X14C2L18 2M from Omron is built for non-contact object detection in automated assembly and material handling systems. This category of sensor helps control machine cycles, verify component placement, and monitor industrial processes securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Flush
  • Sensing distance: 14 mm
  • Overall length of sensor: 77.3 mm
  • Thread length: 59 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Cable
  • Cable specifications: PVC
  • Cable length: 2 m
  • IO-Link baud rate: Not Applicable
  • Degree of protection (IP): IP67/IP67G/IP69K
  • Type of actuation (EF006949): Metallic Target
  • Type of electric connection (EF003961): Cable
  • Suitable for safety functions (EF001597): No

More info

▲

Specifications

SizeM18
Mounting typeFlush
Sensing distance14 mm
Overall length of sensor77.3 mm
Thread length59 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodCable
Cable specificationsPVC
Cable length2 m
IO-Link function
IO-Link baud rateNot Applicable
Degree of protection (IP)IP67/IP67G/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
