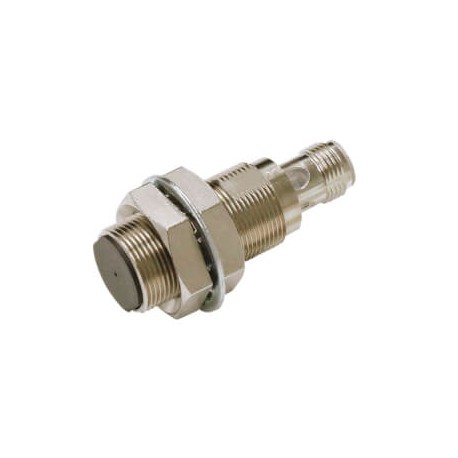

OMRON E2E-X14C218-M1 E2E-X14C218-M1 E2EN1327M 693663 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X14C218-M1 E2EN1327M 693663 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, ..

E2E-X14C218-M1

E2EN1327M

E2EX14C218M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 14 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number E2E-X14C218-M1 is an inductive proximity sensor utilized to detect the position of metallic components in automated assembly and material handling systems. By delivering precise switching signals without direct contact, this sensor helps safeguard mechanical assemblies and ensure consistent production rates. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Quasi-flush
  • Sensing distance: 14 mm
  • Overall length: 53 mm
  • Thread length: 33 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM18
Mounting typeQuasi-flush
Sensing distance14 mm
Overall length53 mm
Thread length33 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K

Accessories

Y92E-J18S30Mounting Sleeves e-jig for M18 Prox
