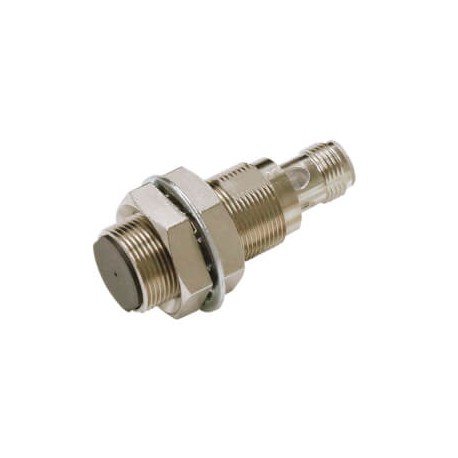

OMRON E2E-X14C118-M1 E2E-X14C118-M1 E2EN1326B 687514 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X14C118-M1 E2EN1326B 687514 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, ..

E2E-X14C118-M1

E2EN1326B

E2EX14C118M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 14 mm, DC, 3-wire, NPN NO, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An inductive proximity sensor, the Omron E2E-X14C118-M1 senses metallic objects reliably in harsh industrial environments, widely used for position feedback and cycle counting.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Quasi-flush
  • Sensing distance: 14 mm
  • Overall length: 53 mm
  • Thread length: 33 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NO
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Housing material (EF001596): Metal
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Type of actuation (EF006949): Metallic Target

More info

▲

Specifications

SizeM18
Mounting typeQuasi-flush
Sensing distance14 mm
Overall length53 mm
Thread length33 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K
