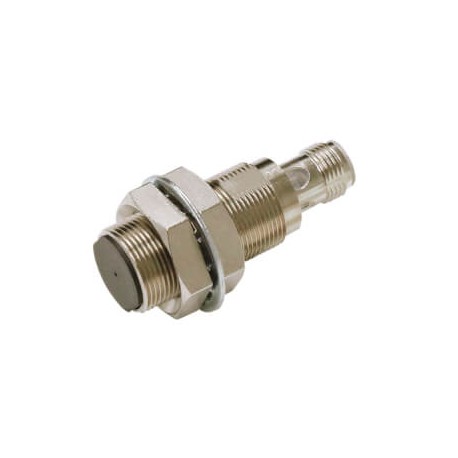

OMRON E2E-X14B218-M1 E2E-X14B218-M1 E2EN1549D 689616 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X14B218-M1 E2EN1549D 689616 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, ..

E2E-X14B218-M1

E2EN1549D

E2EX14B218M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 14 mm, DC, 3-wire, PNP NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron proximity sensor, inductive, nickel-brass, short body, M18, shielded delivers precise target sensing in automated systems where space constraints require compact threaded housing. These components serve as standard position feedback elements in manufacturing cells, conveyors, and mechanical presses.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Quasi-flush
  • Sensing distance: 14 mm
  • Overall length: 53 mm
  • Thread length: 33 mm
  • Material housing: Brass, nickel plated
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM18
Mounting typeQuasi-flush
Sensing distance14 mm
Overall length53 mm
Thread length33 mm
Material housingBrass, nickel plated
Output typePNP
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
Degree of protection (IP)IP67/IP69K
