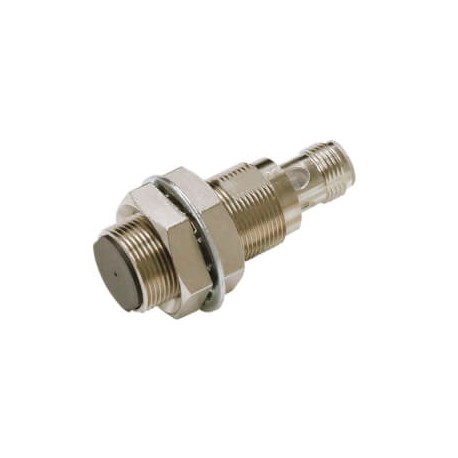

OMRON E2E-X12C218-M1 E2E-X12C218-M1 E2EN1312B 691127 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X12C218-M1 E2EN1312B 691127 OMRON Proximity sensor, inductive, nickel-brass, short body, M18, shielded, ..

E2E-X12C218-M1

E2EN1312B

E2EX12C218M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 12 mm, DC, 3-wire, NPN NC, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for non-contact metal detection in automated setups, this Omron E2E-X12C218-M1 proximity sensor, inductive, nickel-brass, short body, M18, shielded, ... helps monitor moving parts, machine limits, and component positioning efficiently. Industrial automation systems rely on these robust sensors to maintain precise operational cycles and reduce mechanical wear over time. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Quasi-flush
  • Sensing distance: 12 mm
  • Overall length: 53 mm
  • Thread length: 33 mm
  • Material housing: Brass, nickel plated
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Connector M12
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Connector M12

More info

▲

Specifications

SizeM18
Mounting typeQuasi-flush
Sensing distance12 mm
Overall length53 mm
Thread length33 mm
Material housingBrass, nickel plated
Output typeNPN
Operation modeNC
Connection methodConnector M12
Cable specifications-
IO-Link function
