OMRON E2E-X10B230 5M E2E-X10B230 5M E2EN2051M E2EX10B2305MOMS OMRON Proximity sensor, inductive, nickel-brass, short body, M30, s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X10B230 5M E2EN2051M E2EX10B2305MOMS OMRON Proximity sensor, inductive, nickel-brass, short body, M30, s..

E2E-X10B230 5M

E2EN2051M

E2EX10B2305MOMS

OMRON

1 Pcs.

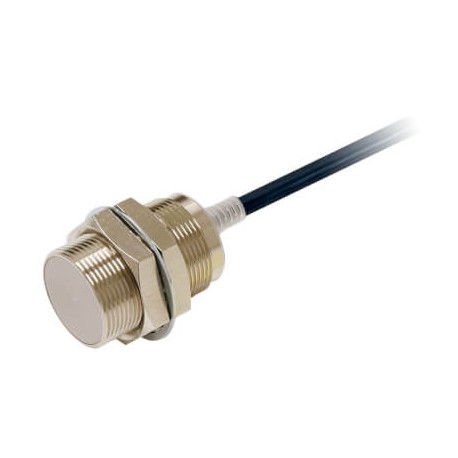

Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 10 mm, DC, 3-wire, PNP NC, 5 m cable

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2E-X10B230 5M is an inductive proximity sensor utilized for accurate, non-contact detection of metal components within automated machinery. Such sensors are standard across industrial applications for verifying part presence, speed monitoring, and operational sequencing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Flush
  • Sensing distance: 10 mm
  • Overall length of sensor: 60.3 mm
  • Thread length: 39 mm
  • Material housing: Brass, nickel plated
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Cable
  • Cable specifications: PVC (oil-resistant)
  • Cable length: 5 m
  • IO-Link baud rate: Not Applicable
  • Degree of protection (IP): IP67/IP67G/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated

More info

▲

Specifications

SizeM30
Mounting typeFlush
Sensing distance10 mm
Overall length of sensor60.3 mm
Thread length39 mm
Material housingBrass, nickel plated
Output typePNP
Operation modeNC
Connection methodCable
Cable specificationsPVC (oil-resistant)
Cable length5 m
IO-Link function
IO-Link baud rateNot Applicable
Degree of protection (IP)IP67/IP67G/IP69K

Product Datasheet
