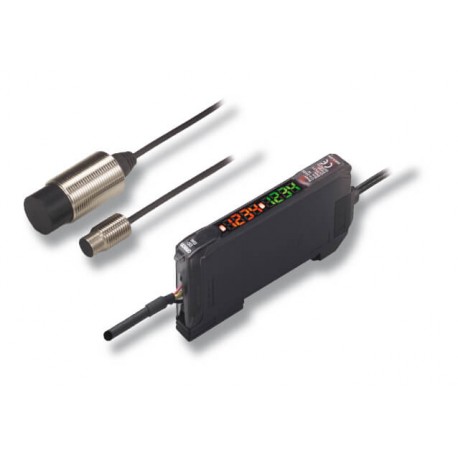

OMRON E2C-EM02 E2C-EM02 176700 E2CEM02 OMRON Inductive with amp separate M10x22mm Enr 2mm Rep 2µm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2C-EM02 176700 E2CEM02 OMRON Inductive with amp separate M10x22mm Enr 2mm Rep 2µm

E2C-EM02

176700

E2CEM02

OMRON

1 Pcs.

Inductive with amp separate M10x22mm Enr 2mm Rep 2µm Inductive with separate amp M10x22mm Enr 2mm Rep 2om

Automation > Inductive proximity switch
Other Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2C-EM02 176700 E2CEM02 OMRON Inductive with amp separate M10x22mm Enr 2mm Rep 2µm is an amplifier-separated inductive sensor designed to detect metallic objects in confined spaces where standard self-contained sensors cannot fit. They are widely implemented in industrial automation for precision gauging, assembly automation, and high-accuracy part positioning.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 5.4 dia. × 18: 1 mm
  • 8 dia. × 22: 2 mm
  • Twin-output models: Area output, open circuit detection, differential operation
  • External-input models: Remote setting, differential operation
  • Ambient temperature: Operating
  • Storage Degree of protection: IEC60529 IP67
  • Material: Case
  • Sensing surface: Heat-resistant ABS

More info

▲
  • Typically several hundred µm detection precision
  • Precision distance teaching
  • Window function (2 outputs) for production tolerance checks

Specifications & ordering info

Ordering information

Sensor heads

Appearance

Sensing distance

Repeat accuracy

Order code

3 dia. × 18

¢

-

0.6 mm

1 µm

E2C-EDR6-F

5.4 dia. × 18

1 mm

1 µm

E2C-ED011

8 dia. × 22

2 mm

2 µm

E2C-ED021

M10 × 22

2 mm

2 µm

E2C-EM021

30 × 14 × 4.8

5 mm

2 µm

E2C-EV051

M18 × 46.3

-

¢

7 mm

5 µm

E2C-EM07M1

M12 × 22

¢

-

2 mm

2 µm

E2C-EM02H

Amplifier units with cables

Item

Functions

Order code

NPN output

PNP output

Twin-output
models

Area output, open
circuit detection,
differential operation

E2C-EDA11

E2C-EDA41

External-input models

Remote setting,
differential operation

E2C-EDA21

E2C-EDA51

Amplifier units with connectors2

Item

Functions

Order code

NPN output

PNP output

Twin-output
models

Area output, open
circuit detection,
differential operation

E2C-EDA6

E2C-EDA8

External-input models

Remote setting,
differential operation

E2C-EDA7

E2C-EDA9

Specifications

Sensor heads

Item

3 dia.

5.4 dia.

8 dia.

M10

M18

30×14×4.8 mm

M12

E2C-EDR6-F

E2C-ED01(-_ )

E2C-ED02(-_ )

E2C-EM02(-_ )

E2C-EM07(-_ )

E2C-EV05(-_ )

E2C-EM02H

Ambient temperature

Operating

-10 to 60°C (with no icing or condensation)

-10 to 200°C

Storage

Degree of protection

IEC60529 IP67

IEC60529 IP60

Material

Case

Brass

Stainless steel

Brass

Zinc

Brass

Sensing surface

Heat-resistant ABS

PEEK

Note: For amplifier specifications refer to complete datashee


1.For models with cut-to-length cables add “-F” for example E2C-ED01-F
For models with protective stainless steel spiral tubes add “-S” for example E2C-ED01-S

2.Order fitting connector (E3X-CN21_) separately from accessories.
