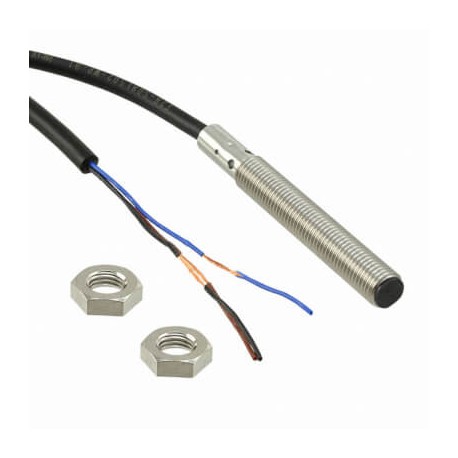

OMRON E2B-S08LS02-WP-C1 2M E2B-S08LS02-WP-C1 2M E2B 2064H E2BS08LS02WPC12MOMI OMRON Inductive Inox M8 Long Flush 2mm 3h NPN NA Cable 2m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-S08LS02-WP-C1 2M E2B 2064H E2BS08LS02WPC12MOMI OMRON Inductive Inox M8 Long Flush 2mm 3h NPN NA Cable 2m..

E2B-S08LS02-WP-C1 2M

E2B 2064H

E2BS08LS02WPC12MOMI

OMRON

1 Pcs.

Inductive Inox M8 Long Flush 2mm 3h NPN NA Cable 2m Lite Proximity sensor, LITE, inductive, stainless steel, long body, M8, shielded, 2 mm, DC, 3-wire, NPN-NO, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring a robust metal housing, the Omron E2B-S08LS02-WP-C1 2M inductive proximity sensor delivers reliable target detection in demanding industrial environments. Factories and automation cells utilize these threaded cylindrical units for continuous position feedback, machine safeguarding verification, and material flow monitoring. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm
  • Length of sensor (EF007334): 64 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor64 mmThread length49 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
