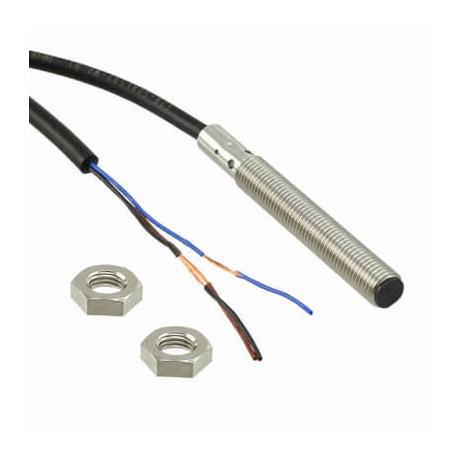

OMRON E2B-S08LS02-WP-B2 2M E2B-S08LS02-WP-B2 2M E2B 2062A E2BS08LS02WPB22MOMI OMRON Inductive Inox M8 Long Flush 2mm 3h PNP NC Cable 2m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-S08LS02-WP-B2 2M E2B 2062A E2BS08LS02WPB22MOMI OMRON Inductive Inox M8 Long Flush 2mm 3h PNP NC Cable 2m..

E2B-S08LS02-WP-B2 2M

E2B 2062A

E2BS08LS02WPB22MOMI

OMRON

1 Pcs.

Inductive Inox M8 Long Flush 2mm 3h PNP NC Cable 2m Lite Proximity sensor, LITE, inductive, stainless steel, long body, M8, shielded, 2 mm, DC, 3-wire, PNP-NC, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Precision metal detection in confined spaces is accomplished with this Omron E2B-S08LS02-WP-B2 2M inductive proximity sensor, designed for non-contact sensing in automated systems. These devices provide continuous feedback to optimize manufacturing processes and prevent mechanical jams.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm
  • Length of sensor (EF007334): 64 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor64 mmThread length49 mmDegree of protection (IP)IP67
