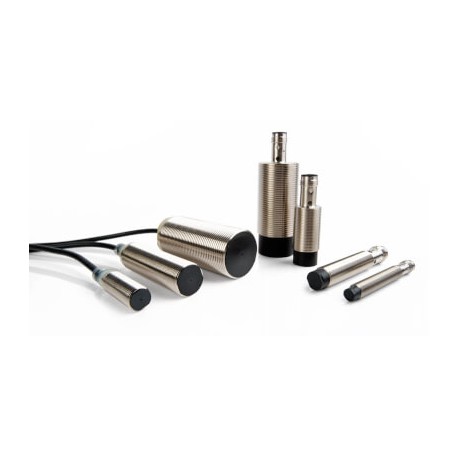

OMRON E2B-S08LS01-WP-C1 2M E2B-S08LS01-WP-C1 2M E2B 2016H E2BS08LS01WPC12MOMI OMRON Inductive Inox M8 Long Furring 1mm 3h NPN NA Cable .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-S08LS01-WP-C1 2M E2B 2016H E2BS08LS01WPC12MOMI OMRON Inductive Inox M8 Long Furring 1mm 3h NPN NA Cable ..

E2B-S08LS01-WP-C1 2M

E2B 2016H

E2BS08LS01WPC12MOMI

OMRON

1 Pcs.

Inductive Inox M8 Long Furring 1mm 3h NPN NA Cable 2m Lite Proximity sensor, inductive, stainless steel, long body, M8, shielded, 1 mm, DC, 3-wire, NPN-NO, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2B-S08LS01-WP-C1 2M is an inductive proximity sensor designed to identify the presence of metal parts without physical contact. Industrial automation networks depend on these sensors to control movement limits, track product flow, and feed positional data to PLCs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • M8: ⬛
  • −: ⬛
  • M12: ⬛
  • −: ⬛
  • M18: ⬛
  • −: ⬛
  • M30: ⬛
  • −: ⬛
  • M8: ⬛
  • −: ⬛
  • M12: ⬛
  • −: ⬛
  • M18: ⬛
  • −: ⬛
  • M30: ⬛
  • −: ⬛

More info

▲
Features

The ideal solution for standard industrial environments

Thanks to the simple construction and Omron’s innovative “hot melt” production process, the E2B sensors embody two characteristics: value-for-money and high reliability.

  • All-round-visible indicator
  • The laser printed part number
  • Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)
  • Operating temperature: -25°C to 70°C
  • Water resistance: IP67

Ordering information

Pre-wired

Size



Sensing distance

Output configuration

Order code (for pre-wired types with 2 m PVC cable)

Operation mode NO

Operation mode NC

M8

⬛

−

2.0 mm

PNP1

E2B-S08KS02-WP-B1 2M2

E2B-S08KS02-WP-B2 2M2

−

⬛

4.0 mm

PNP1

E2B-S08KN04-WP-B1 2M2

E2B-S08KN04-WP-B2 2M2

M12

⬛

−

4.0 mm

PNP1

E2B-M12KS04-WP-B1 2M

E2B-M12KS04-WP-B2 2M

−

⬛

8.0 mm

PNP1

E2B-M12KN08-WP-B1 2M

E2B-M12KN08-WP-B2 2M

M18

⬛

−

8.0 mm

PNP1

E2B-M18KS08-WP-B1 2M

E2B-M18KS08-WP-B2 2M

−

⬛

16.0 mm

PNP1

E2B-M18KN16-WP-B1 2M

E2B-M18KN16-WP-B2 2M

M30

⬛

−

15.0 mm

PNP1

E2B-M30KS15-WP-B1 2M

E2B-M30KS15-WP-B2 2M

−

⬛

30.0 mm

PNP1

E2B-M30LN30-WP-B1 2M

E2B-M30LN30-WP-B2 2M

Connector types

Size



Sensing distance

Output configuration

Order code

Operation mode NO

Operation mode NC

M8

⬛

−

2.0 mm

PNP1

E2B-S08KS02-MC-B12

E2B-S08KS02-MC-B22

−

⬛

4.0 mm

PNP1

E2B-S08KN04-MC-B12

E2B-S08KN04-MC-B22

M12

⬛

−

4.0 mm

PNP1

E2B-M12KS04-M1-B1

E2B-M12KS04-M1-B2

−

⬛

8.0 mm

PNP1

E2B-M12KN08-M1-B1

E2B-M12KN08-M1-B2

M18

⬛

−

8.0 mm

PNP1

E2B-M18KS08-M1-B1

E2B-M18KS08-M1-B2

−

⬛

16.0 mm

PNP1

E2B-M18KN16-M1-B1

E2B-M18KN16-M1-B2

M30

⬛

−

15.0 mm

PNP1

E2B-M30KS15-M1-B1

E2B-M30KS15-M1-B2

−

⬛

30.0 mm

PNP1

E2B-M30LN30-M1-B1

E2B-M30LN30-M1-B2

Optional features

Refer to complete datasheet or contact your OMRON representative for the below optional features

Sensing module and body

−Single sensing distance (ideal for compatibility with previous machine generations)

−Long body (ideal for mounting through thicker constructions)

Connection

−M8 3-pin -MC e.g. E2B-S08KS02-MC-B1

Output

−200 mA max. load current

Specifications

(Exemplary for shielded versions.)

Item

M8

M12

M18

M30

E2B-S08KS

E2B-M12KS

E2B-M18KS

E2B-M30KS

Sensing distance

2 mm±10%

4 mm±10%

8 mm±10%

15 mm±10%

Response frequency

1,500 Hz

1,000 Hz

500 Hz

250 Hz

Power supply voltage
(operating voltage)

12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)

Protective circuits

Output reverse polarity protection, Power source circuit reverse polarity protection

Ambient temperature

Operating and storage

−25 to 70°C

Degree of protection

IP67 after IEC 60529

Material

Case

Stainless steel

Brass-nickel plated

Sensing surface

PBT


1.NPN models are available. For ordering replace “-B1” or “-B2” by “-C1” or “-C2”.
2.M8 sized housings are only available in stainless steel (SUS 303).
