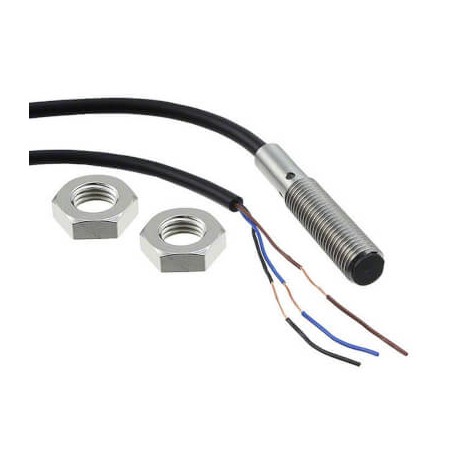

OMRON E2B-S08KS02-WP-C2 2M E2B-S08KS02-WP-C2 2M E2B 2054M E2BS08KS02WPC22MOMI OMRON Inductive Inox M8 Flush-2mm 3h NPN NC Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-S08KS02-WP-C2 2M E2B 2054M E2BS08KS02WPC22MOMI OMRON Inductive Inox M8 Flush-2mm 3h NPN NC Cable 2m Lite

E2B-S08KS02-WP-C2 2M

E2B 2054M

E2BS08KS02WPC22MOMI

OMRON

1 Pcs.

Inductive Inox M8 Flush-2mm 3h NPN NC Cable 2m Lite Proximity sensor, inductive, stainless steel, short body, M8, shielded, 2 mm, DC, 3-wire, NPN NC, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2B-S08KS02-WP-C2 2M inductive proximity sensor enables accurate metal detection in restricted spaces, supporting automated assembly cells, small parts handling, and precision robotics. This cylindrical sensor type ensures reliable operational feedback.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm
  • Length of sensor (EF007334): 42 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typeNPNOperation modeNCConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor42 mmThread length27 mmDegree of protection (IP)IP67
