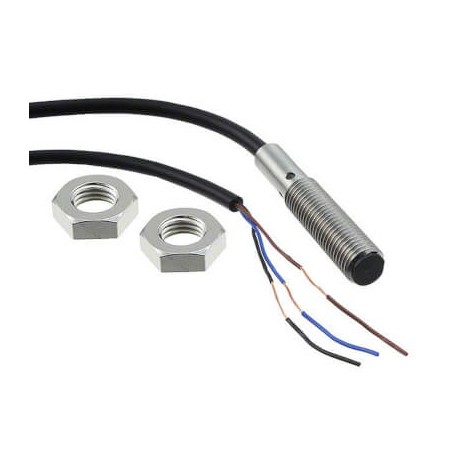

OMRON E2B-S08KS02-WP-C1 2M E2B-S08KS02-WP-C1 2M E2B 2052D E2BS08KS02WPC12MOMI OMRON Inductive Inox M8 Flush-2mm 3h NPN NA Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-S08KS02-WP-C1 2M E2B 2052D E2BS08KS02WPC12MOMI OMRON Inductive Inox M8 Flush-2mm 3h NPN NA Cable 2m Lite

E2B-S08KS02-WP-C1 2M

E2B 2052D

E2BS08KS02WPC12MOMI

OMRON

1 Pcs.

Inductive Inox M8 Flush-2mm 3h NPN NA Cable 2m Lite Proximity sensor, inductive, stainless steel, short body, M8, shielded, 2 mm, DC, 3-wire, NPN NO, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron E2B-S08KS02-WP-C1 2M Inductive Inox M8 Flush-2mm 3h NPN NA Cable 2m Lite is an inductive proximity sensor built to sense metallic objects reliably within automated production lines. Technicians integrate these sensors into processing equipment, packaging systems, and robotic cells to monitor machine movement and control sequences. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm
  • Length of sensor (EF007334): 42 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor42 mmThread length27 mmDegree of protection (IP)IP67
