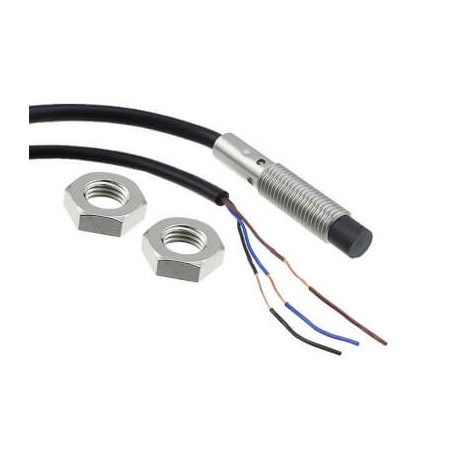

OMRON E2B-S08KN04-WP-B2 2M E2B-S08KN04-WP-B2 2M E2B 2074E E2BS08KN04WPB22MOMI OMRON Inductive Inox M8 enr 4mm 3h PNP NC Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-S08KN04-WP-B2 2M E2B 2074E E2BS08KN04WPB22MOMI OMRON Inductive Inox M8 enr 4mm 3h PNP NC Cable 2m Lite

E2B-S08KN04-WP-B2 2M

E2B 2074E

E2BS08KN04WPB22MOMI

OMRON

1 Pcs.

Inductive Inox M8 enr 4mm 3h PNP NC Cable 2m Lite Proximity sensor, LITE, inductive, stainless steel, short body, M8, unshielded, 4 mm, DC, 3-wire, PNP-NC, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as an inductive proximity sensor, the Omron E2B-S08KN04-WP-B2 2M detects the presence of metal components within automated production lines. Industrial setups utilize these sensors to monitor motion sequences, detect positioning limits, and ensure synchronized operation of machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 4 mm

More info

▲
SizeM8Mounting typeNon-flushSensing distance4 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor42 mmThread length21 mmDegree of protection (IP)IP67
